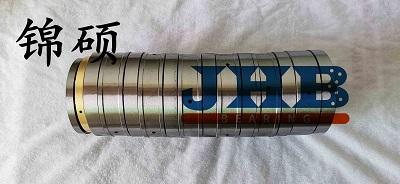

Bearing manufacturer No. F-215427.T8AR
Model specification F215427T8AR
Id d Standard size
D outer diameter
Height B
Weight standard size
steel cage shape
Precision grade standard version
Bearing material Bearing steel GCr15
Product structure description thrust cylindrical roller bearing
UPC/HS code International product HS code 8482500090
T8AR 8 columns of axial force is composed of eight series bearing T8AR and 894 series axial cylindrical roller bearings
Series thrust bearings are also known as "multistage cylindrical roller thrust bearings".
Tandem thrust bearings are made up of "stages" which consist of precision ground and matching thrust plates. These bearings also include compression sleeves separated by cylindrical roller assemblies. This design enables series thrust bearings to provide solutions in radially constrained envelopes. Bearings are available in multiple stages, 2-8 to suit your design requirements. These bearings are available in a variety of sizes and options according to your preferences.
Series thrust bearings can bear heavy loads in a limited space, be firmly supported on the axis, and be used for a long time with low friction power. In addition, these bearings are moved by oil lubrication. In addition, these series thrust bearings are mainly used in gearboxes of single - and twin-screw extruders in the rubber and plastics industries.
1. Multi-stage cylindrical roller thrust bearings (basic type) use elastic gaskets to connect shaft washers, bearing seat washers, rollers and cage assemblies.
The thrust bearing has a detachable component. The user shall carefully assemble or disassemble the bearings in accordance with the numerical sequence provided by us.
2. Multi-stage cylindrical roller thrust bearing (shaft type) is made by passing the shaft through the inner hole of the basic multi-stage cylindrical roller thrust bearing and fixing the bearing on the shaft through the locking ring. The components of this type of cylindrical roller thrust bearing are indivisible.
3. The locking ring of multi-stage cylindrical roller thrust bearing (sleeve type) is made by covering a sleeve on the outside of the basic multi-stage cylindrical roller thrust bearing. It is also indivisible, assembled and disassembled as a whole.
Multistage cylindrical roller thrust bearing (series bearing) has the characteristics of limited radial space, large axial force, all rows of rollers are supported, long service life, etc., it is the ideal spindle of parallel screw extruder.
